| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SNF11 |
| ขั้นต่ำ: | 1 |
| ราคา: | โปร่ง |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 5 ชุดต่อเดือน |

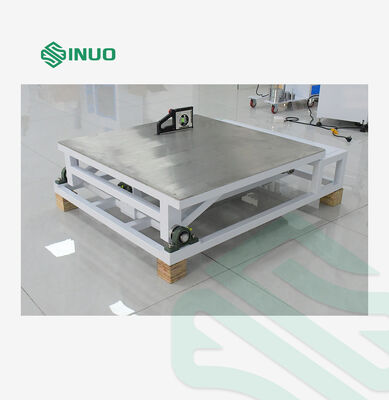

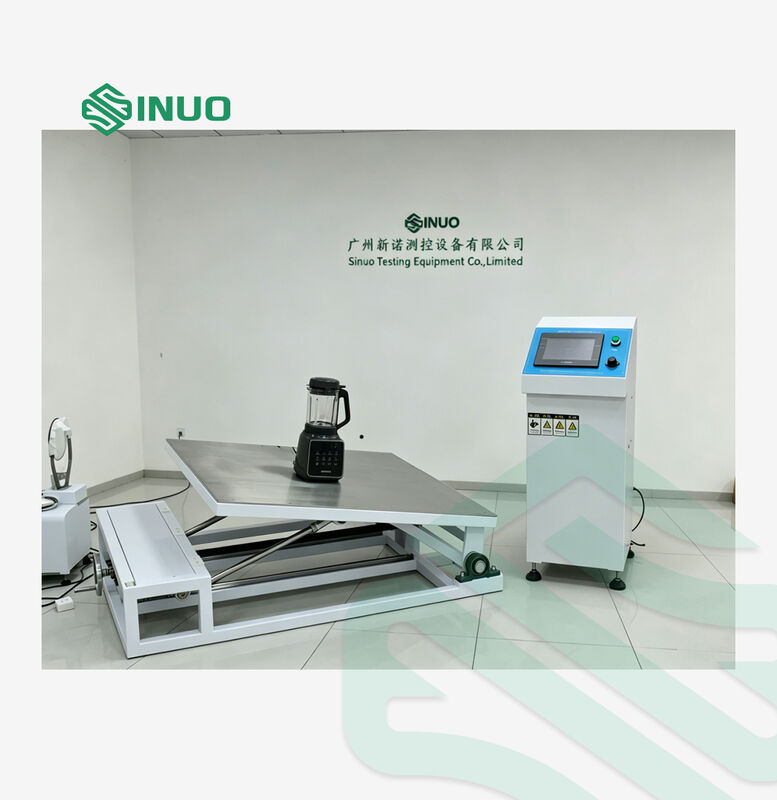

The Electrolyte Retention Test Machine is designed and manufactured in accordance with IEC 60095-1:2018 "Lead-acid starter batteries - Part 1: General requirements and methods of test", Clause 9.9. This equipment verifies whether electrolyte leakage occurs when a lead-acid starter battery is subjected to tilting in different orientations.
The system automatically completes a full test cycle including four-direction tilting, holding time, and reset. It is suitable for EU certification testing, R&D verification, and quality inspection applications.

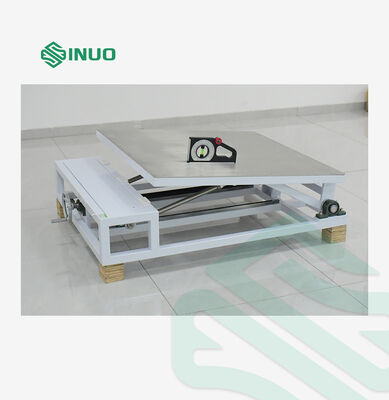

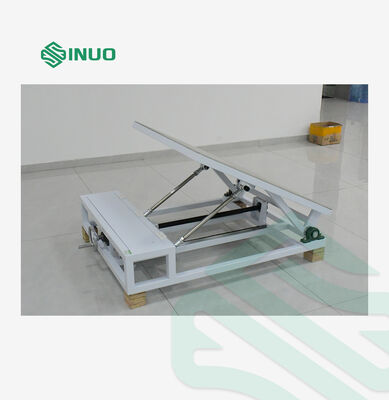

The servo motor drives the platform to rotate 90° each time, allowing the battery sample to be tested in four different orientations. The pneumatic cylinder quickly drives the tilting platform to switch between 0° and 45° positions.
| Parameter | Specification |
|---|---|
| Model | SNF11 |
| Station | Single station |
| Control System | PLC intelligent integrated control, 7-inch HMI touchscreen |
| Drive Mode | Servo motor + pneumatic cylinder |
| Sample Fixture | Multi-point perforated plate fixture, adaptable to various sample sizes, max W×D×H ≤ 400×400×500 mm |
| Rotation Angle | 0°, 90°, 180°, 270° |
| Tilting Interval Time | 0-999.9 s (programmable) |
| Tilting Angle | 45° (mechanical positioning) |
| Tilting Speed | < 1 s |
| Tilting Holding Time | 0-999.9 s (programmable) |
| Equipment Size | Frame: approx. 1400 × 800 × 800 mm (W×D×H) Control Cabinet: 400 × 500 × 800 mm (W×D×H) |
| Weight | approx. 200 kg |
| Component | Brand |
|---|---|
| Electrical Control Cabinet | Sinuo |
| PLC | Mitsubishi |
| HMI Touch Screen | Weintek |
| Motor | Inovance |
| Cylinder | Airtac / Shenzhi |
| Gear Reducer | Domestic |
| Electrical Components | FUJI, Schneider, Omron, CHINT, etc. |
| Machine Frame | Sinuo |
| Sample Fixture | Sinuo |
| Software | Sinuo |
