| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SN881C-9.7F |
| ขั้นต่ำ: | 1 |
| ราคา: | Customized |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |

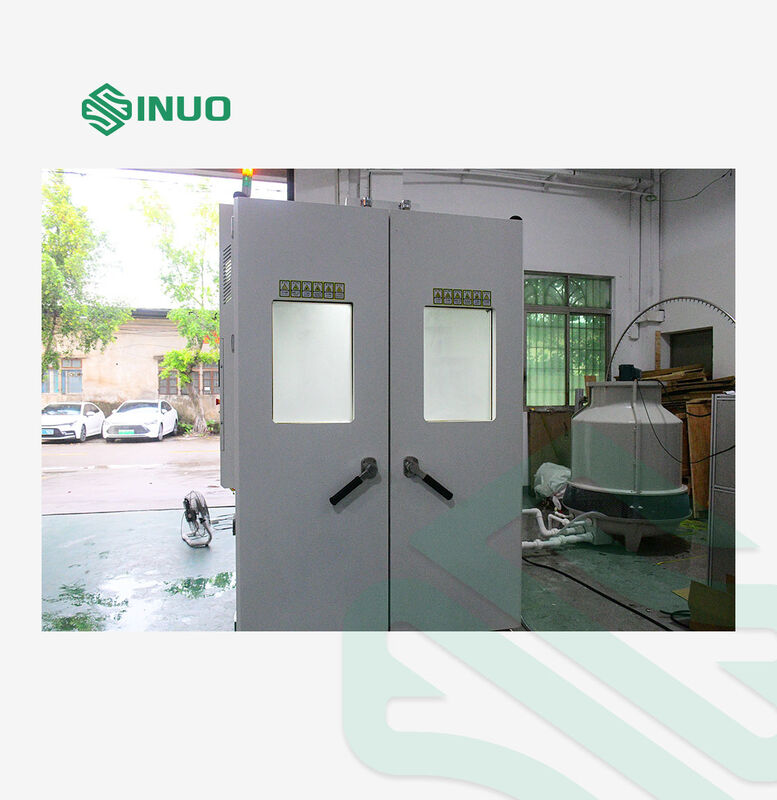

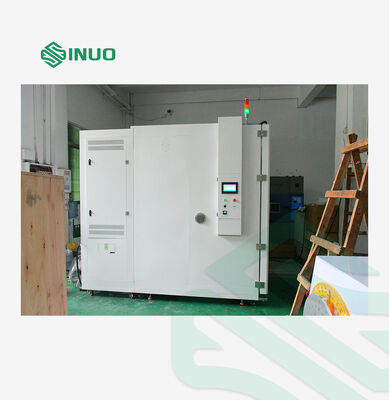

The Walk-in Constant Temperature and humidity Test Chamber is designed to expose products, components, and materials to controlled temperature and humidity environments to evaluate their performance and reliability under various conditions. This equipment is widely used in environmental simulation and reliability testing for electrical and electronic products, as well as other industrial components and materials. It supports constant high/low temperature testing, temperature/humidity cycling tests, and gradual temperature/humidity change tests.
This constant temperature and humidity test chamber conforms to the following IEC standards and clauses:
• IEC 60068-2-1: Environmental testing – Part 2-1: Tests – Test A: Cold
• IEC 60068-2-2: Environmental testing – Part 2-2: Tests – Test B: Dry heat
• IEC 60068-2-3: Environmental testing – Part 2-3: Tests – Test Ca: Damp heat, steady state
• IEC 60068-2-30: Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic (12 h + 12 h cycle)
The following samples are not permitted to be tested or stored in this chamber:
• Flammable, explosive, or highly volatile substances
• Corrosive substances, biological samples
• Samples with strong electromagnetic emission sources
|
Volume and Dimensions |
|
|
Effective Volume |
9.7F |
|

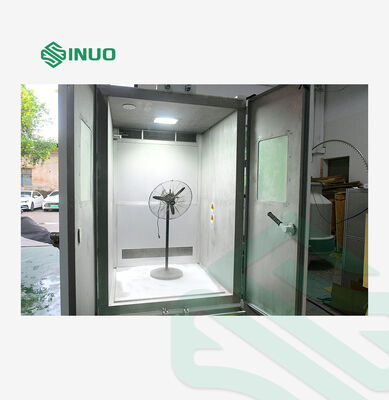

Internal Chamber Dimensions |
W2200*H2000*D2200 mm |
|
External Dimensions |
Approx. W2650×H2950×D2900 mm |
|
Performance Specifications |
|
|

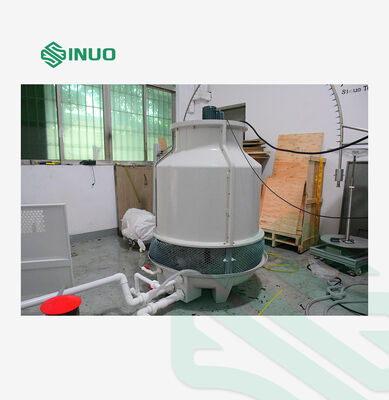

Cooling Method |
Water-cooled |
|
Temperature Range |
-40°～ 130℃ |
|
Humidity Range |
Standard: 20%RH～95%RH |
|
Temperature /Humidity Fluctuation |
±2℃/±2.0%RH |
|
Temperature Resolution |
0.01℃ |
|
Humidity Resolution |
0.01RH |
|
Temperature Uniformity |
≤2℃ |
|
Humidity Uniformity |
≤75%RH: ±3%RH; >75%RH: ±5%RH |
|
Heating Rate |
≤3.0℃/min (non-linear, no load) |
|
Cooling Rate |
Average 1.0℃/min (non-linear, no load) |
|
Load Capacity |
1 kW heat load |
|
Temperature and Humidity Diagram |
|
|
Operating Conditions |
|
|
Ambient temperature |
-5℃ ~ +28℃ |
|
Relative humidity |
≤ 85%RH |
|
Atmospheric pressure |
80kPa ~ 106kPa |
|
Power supply |
380V AC (±10%), three-phase lines + protective earth wire |
|
Grouding Resistance |
≤ 4Ω |
|
Total power |
approx. 100kW |
|
Maximum working current |
approx. 152A |
