| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SN553-RV8000 |
| ขั้นต่ำ: | 1 |
| ราคา: | Customized |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |

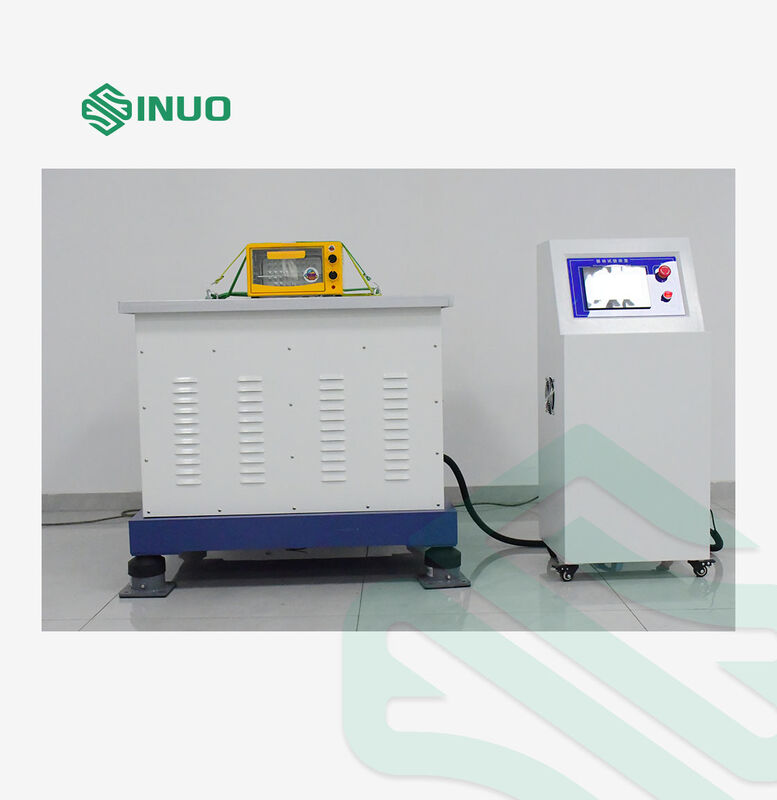

The SN553‑RV8000 Mechanical Vibration Testing Machine is designed to simulate transportation vibration and mechanical shock for household appliances, electronics, components, modules, instruments, and electromechanical products. It fully complies with reliability test standards including IEC 60068, MIL‑STD‑810, ISO 10816, and UL, making it ideal for quality verification, reliability testing, and transport simulation.
|
Table Size |
1000mm×800mm |
|---|---|
|
Frequency Range |
10----60Hz |
|
Max. Load Capacity |
300KG |
|
Acceleration Range |
0---11G |
|
Amplitude Range |
0—2.6mm(P-P),adjustable |
|
Control Interface |
RS232 /9P |
|
Functions |
Fixed frequency, sweep (logarithmic Oct/min, linear), multi-stage random |
|
Waveform |
Sine wave |
|
Vibration Direction |
Vertical (X/Y/Z directions achieved by adjusting product orientation) |
|
Equipment Dimensions |
W1050 mm×D820 mm×H680 mm |
|
Equipment Weight |
500KG |
|
Power Supply |
AC220V/50HZ/Single-phase |
