| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SNQC1005A |
| ขั้นต่ำ: | 1 |
| ราคา: | Customized |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |

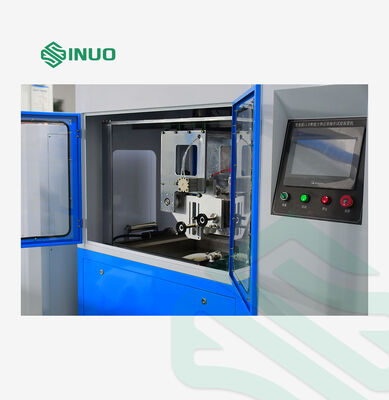

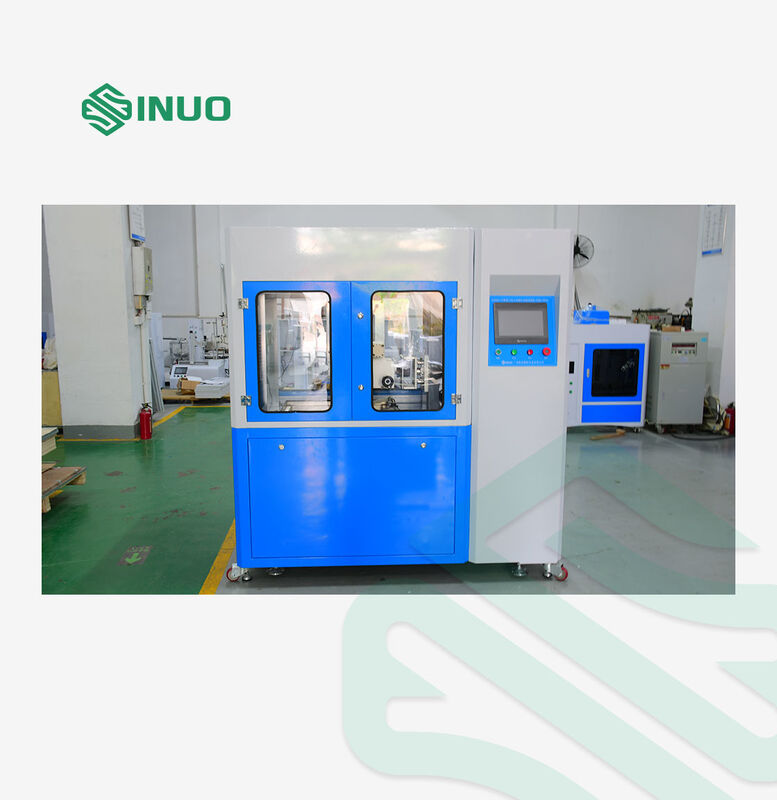

This test machine is specially designed to perform breaking capacity test and normal operation test for electric vehicle charging interfaces, industrial plugs, sockets and couplers. It verifies whether electrical accessories can withstand repeated mechanical, electrical and thermal stresses during normal operation without excessive wear, deformation or other harmful effects, so as to validate product reliability and service life. The equipment uses a servo motor drive mechanism to realize repeated plugging and unplugging actions; it supports an external load for breaking capacity testing. All test parameters including on/off time, test speed, stroke and angle can be preset via the touchscreen panel.
| Item | Specification |
|---|---|
| Test Items | Breaking capacity test; Normal operation test |
| Test Samples | AC/DC charging guns, vehicle connectors, plugs, sockets, couplers |
| Test Station | Single station |
| Control System | Mitsubishi PLC + 7-inch color touchscreen HMI |
| Operation Mode | Manual / program-controlled |
| Drive Mode | Servo motor for plugging / flipping; auxiliary cylinder for interlock switch |
| Fixture | Mechanical clamping; X/Y/Z 3-axis adjustable; universal for GB/US/EUR standards |
| Automatic Flip | 90° automatic flip; flip holding time: 0–600s |
| Test Cycles | 0–999999 times (presettable, auto stop) |
| Breaking Capacity Conduction Time | 1–999.9s (presettable) |
| Plug/Withdrawal Rate | 0–10 times/min (presettable) |
| Test Stroke | 0–150mm (presettable) |
| Test Speed | 0–1100mm/s (presettable on touchscreen) |
| Force Monitoring | 0–500N force sensor; real-time curve; max insertion/extraction force display |
| Locking Simulation | Automatic mechanical locking press function |
| Solution Tank | 1 set (for IEC 62196-1:2022 Clause 23.3.2 test) |
| Solution Dip Setting | Dip times, dip time, drying time, plug cycles all programmable |
| Load Mode | External load (compatible with SN2217-480V250A) |
| Alarm Function | Circuit break alarm & test count recording under load |
| Safety Protection | Ground protection, short-circuit protection, overload protection |
| Structure & Features | |
| Integrated rigid frame structure | |

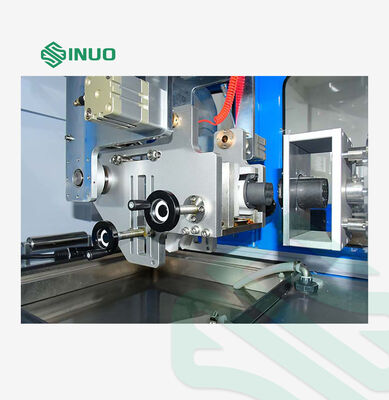

| Servo motor drive with precision ball screw and timing belt | |
| Mitsubishi PLC + 7-inch color touchscreen HMI | |

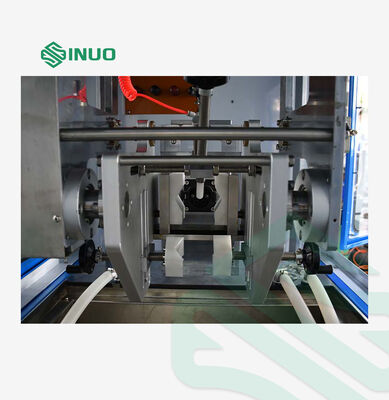

| 3-axis adjustable fixture for wide compatibility | |
| Automatic 90° flipping mechanism for solution dip test | |
| Real-time force monitoring and curve display | |
| Automatic locking device simulation | |
| Programmable test cycles & auto-stop function | |
| Operating Environment | |
| Power supply: AC220V±10% / 50–60Hz, 2kW | |
| Working temperature: 0–40℃ | |
| Humidity: 30%–90%RH | |
| Dimensions: approx. W1000×D750×H1200mm | |
| Weight: approx. 150kg |
