| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SNQC1008B |
| ขั้นต่ำ: | 1 |
| ราคา: | โปร่ง |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 5 ชุดต่อเดือน |
IEC 61851 Pendulum Impact Testing Device – Mechanical Strength Test for EV Charging Piles
Applicable Standards:
IEC60068-2-75:2014
IEC62262:2021
IEC 61851-1-2017
IEC 62477-1:2022
Test Specimen and Scope:
Electric vehicle AC/DC charging piles, transformer cabinets, and metering boxes.
Test Purpose:
This equipment is used to perform mechanical strength testing on EV charging piles or transformer cabinets used in electric vehicle charging systems.
Test Principle:
Test Eh a: Pendulum Hammer Impact
The impact element is released freely through a 1-meter pendulum tube from a defined height and strikes the specimen at the lowest vertical position. The test is achieved by converting gravitational potential energy into kinetic energy.
Test Eh c: Vertical Free Fall Hammer Impact
The impact element falls vertically through a guide tube from a specified height in a static state and impacts the horizontal surface of the specimen. The test is achieved by converting gravitational potential energy into kinetic energy.
Structure and Features:

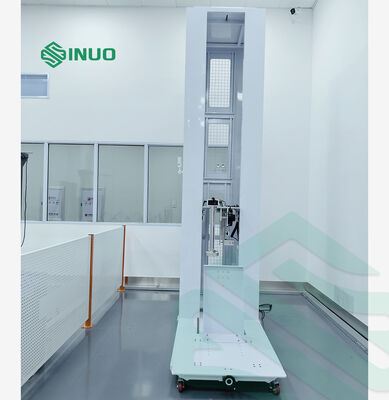

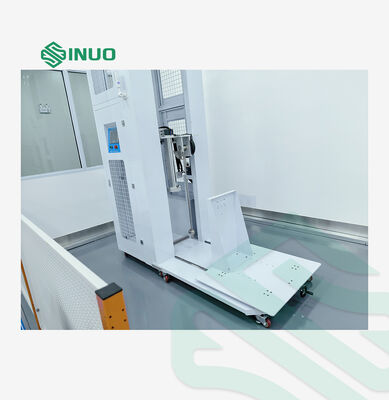

As shown in the layout below, the system consists of left and right structures.Left side: pendulum adjustment and release mechanism,Right side: specimen mounting platform
1.The pendulum impact unit is mounted on a wheeled trolley structure, allowing large DC charging piles to be tested from different sides. Small AC/DC chargers can be mounted on the platform including bottom and rear side testing.
2. Both pendulum and vertical drop mechanisms are electrically adjustable in height, with a range of 0.2–2.5 m.
3.Impact angle is adjustable to meet different drop heights, supporting IK06–IK11 energy levels (1–50J).
4. Anti-secondary impact function for pendulum system.
5. Electromagnetic release for both pendulum and drop hammer with remote one-key operation.
6. Quick replacement of impact elements.
7. PLC control system with touch screen and infrared remote control.
8. A3 steel frame with powder-coated finish for high rigidity and stability.
Technical Parameters:
|
Model |
SNQC1008B |
|
Control System |
PLC control, touch screen operation. All functions including lifting and release are integrated into the touch screen, with infrared remote control support. |
|
Test Specimen Range |
1, Wall-mounted and pole-mounted AC charging piles 2, Cabinet-type DC charging piles Note: Maximum specimen size on platform: W×D×H = 1 × 1 × 2.0 m
|
|
Test Functions |
1, Pendulum impact test (side impact) 2, Drop hammer impact test (top surface impact) |
|
Drive System |
Motor + reducer for lifting; electromagnetic release system. |
|
Transmission System |
Precision ball screw + linear guide rail. |
|
System Structure |
Frame structure with specimen platform. Impact mechanism installed on frame; large specimens may be placed directly on the floor. Steel enclosure with corrosion-resistant coating.
|
|
Anti-secondary impact |
Yes, automatic locking of rebound tube |
|
Height adjustment |
Motor-driven via touch screen input |
|
Release method |
Electromagnetic, one-key operation |
|
Impact energy |
1,2,5,10,20J,50J(IK06–IK11)
|
|
Pendulum impact unit equivalent masses |
250g,500g,1.7kg,5 kg,5 kg,10 kg±1%,achieved through pendulum tube combination |
|
Pendulum tubes |
1J: Ø9 mm steel tube, length 1000 mm, wall thickness 0.5 mm 2J: Ø10 mm steel tube, length 1000 mm 5–50J: Ø15.9 mm steel tube, length 1000 mm |
|
Test height |
electric lifting, stroke 200–2500 mm, touchscreen control |
|
Drop height |
Range:0-500mm,with scale display, adjustable impact angle
|
|
Lifting system |
motor-driven, height set via touchscreen |
|
Release system |
electromagnetic release with one-button operation |
|
Impact energy range |
1 / 2 / 5 / 10 / 20 / 50 J (IK06–IK11) |
|
Equivalent masses |
250g,500g,1.7kg,5 kg,5 kg,10 kg±1%,self-weight based system |
|
Guide tubes |
1,2,5,10,20J,50J,dedicated tubes for each energy level |
|
Base Plate |
Reinforced heavy-duty steel base plate |
|
Specimen impact height |
Electric vertical adjustment with a stroke of 200–2500 mm, controlled via touchscreen |
|
Specimen impact horizontal positioning |
Adjustable extension position of the drop weight mechanism, allowing impact at different points on the upper surface of the specimen |
|
Drop height |
digital display on touchscreen; height can be set after initial contact via touchscreen control |
|

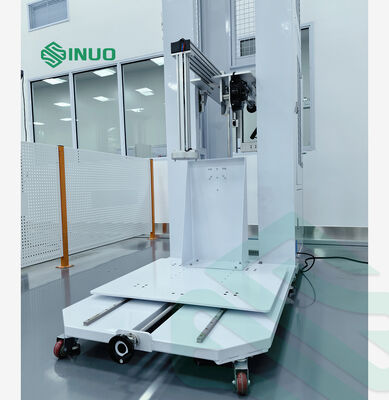

Sample Platform Structure |
|
|
Dimensions |
1.0*1.2m,capable of clamping specimens up to 1.0 × 1.0 m |
|
Base plate |
10mm thick steel plate with threaded mounting holes arranged according to specimen layout requirements |
|
Support columns |
vertical mounting columns compatible with rear-mounted sample panels |
|
Quick connection & separation structure |
Allows connection to or separation from the impact frame; used in connected mode for small specimens and in separated mode for large DC charging piles (EV charging stations) |
|
Safety & Functional Features |
1. Motor overload protection 2. Emergency stop protection 3. Three-color status indicator system: Yellow: Standby Green: Running Red: Alarm Real-time system status indication 4. Leakage protection system included |
|
Mobility Design |
Both the impact frame and sample platform are equipped with support structures and caster wheels, allowing mobility and secure locking to the ground when positioned. |
Annex Tables:
Table 3 Relationship of IK code and corresponding energy
|
IK Code |
IK00 |
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
IK11 |
|
Energy / J |
a |
0.14 |
0.2 |
0.35 |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
|
Note 1. If higher impact energy is required, the recommended value is 50J. Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits. |
||||||||||||
