| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SN552D-864L |
| ขั้นต่ำ: | 1 |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |

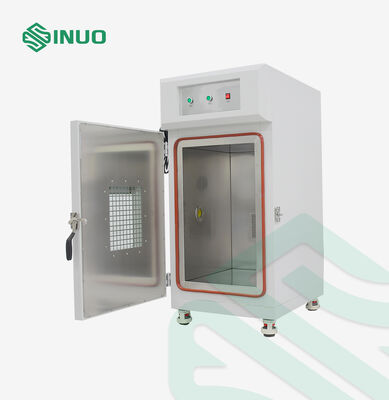

| Door Design | Single hinged door with double-layer silicone rubber sealing strip resistant to high/low temperatures and anti-aging |
| Door Reinforcement | 5mm thick L-shaped steel plate reinforcement with hinges and door lock fixed with bolts for maximum strength |
| Stainless Steel Hinges | Three sets of high-strength stainless steel hinges on each side, each capable of withstanding 3 tons of force |
| Bottom Construction | 4 universal wheels with fixed feet for easy mobility and stable positioning |
| Explosion-proof Design | Integrally formed construction with strength to withstand two 230Ah battery cell explosions. Features 2mm SUS304 stainless steel inner wall + 3mm cold-rolled steel plate with 5# channel steel reinforcement |
| Pressure Relief | 300×300mm pressure relief port designed to withstand forces ≥1.2bar under pressure relief conditions |
| Explosion-proof Chains | Four φ8mm explosion-proof chains (two on each side) to prevent door ejection during explosions |
| Work Chamber Size | W 900 × H 800 × D 1200mm (864L volume) |
| Outer Box Size | Approximately L1400 × W1850 × H2050mm |
| Temperature Range | 0℃ to 85℃ (full range controllable, ±0.01℃ accuracy) |
| Temperature Fluctuation | ≤ ±0.5℃ |
| Temperature Deviation | ≤ ±1.5℃ |
| Temperature Uniformity | ≤ 1.5℃ |
| Heating Rate | 0℃ to 85℃: average 3℃/min non-linear (no load) |
| Cooling Rate | 85℃ to 0℃: average 1℃/min non-linear (no load) |
