| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SN883-X65 |
| ขั้นต่ำ: | 1 |
| ราคา: | Customized |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 30 ชุด/เดือน |

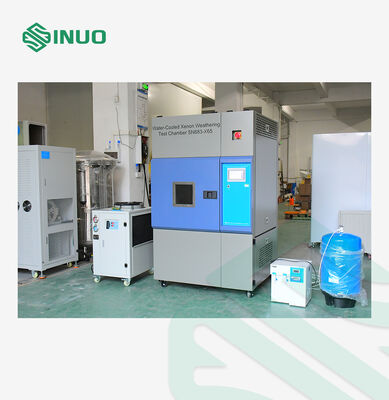

| Model | SN883-X65 |
| Dimensions | 124cm * 114cm * 202cm (W*D*H) |
| Exposure Area | 6500cm² / Approximately 65 standard samples (140mm*70mm) |
| Light Source | 6.5kW long arc water-cooled xenon lamp (Q-LAB imported) |
| Light Source Life | Approximately 2000 hours (at irradiance 0.51W/m² @340nm) |
| Irradiance Display Bands | 340nm, 420nm, 300-400nm optional |
| Irradiance Range | 0.3W/m² - 1.1W/m² (@340nm) 40W/m² - 120W/m² (@300nm-400nm) |
| Sample Temperature | Blackboard: 40℃-110℃ Black mark: 40℃-120℃ |
| Chamber Temperature | 38℃-80℃ |
| Power Source | AC 208V, 60Hz, three-phase five-wire (including ground) |
| Water Source | Tap water: 0.14-0.3 MPa Laboratory secondary water: 0.08-0.15 MPa Consumption: ~150 L/day |
| Drain Requirements | Height from ground: ≤15cm Interface diameter: ≥5cm |
| Ambient Conditions | Temperature: 18℃-28℃ Humidity: 10%RH-85%RH |
| Installation Space | ≥280cm*300cm*280cm (W*D*H) |
| Environment Requirements | Indoor, clean, low dust, flat ground, no corrosive, flammable, or explosive substances |
