| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SN447 |
| ขั้นต่ำ: | 1 |
| ราคา: | Customized |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
| ความสามารถในการจําหน่าย: | 100 ชุด/เดือน |
IPX5 IPX6 Jet Nozzle IP Rating Test Equipment Nozzle IEC 60529
Complied Standards & Clauses
IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX5 & IPX6.
Equipment Overview
The jet nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5.
It ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.

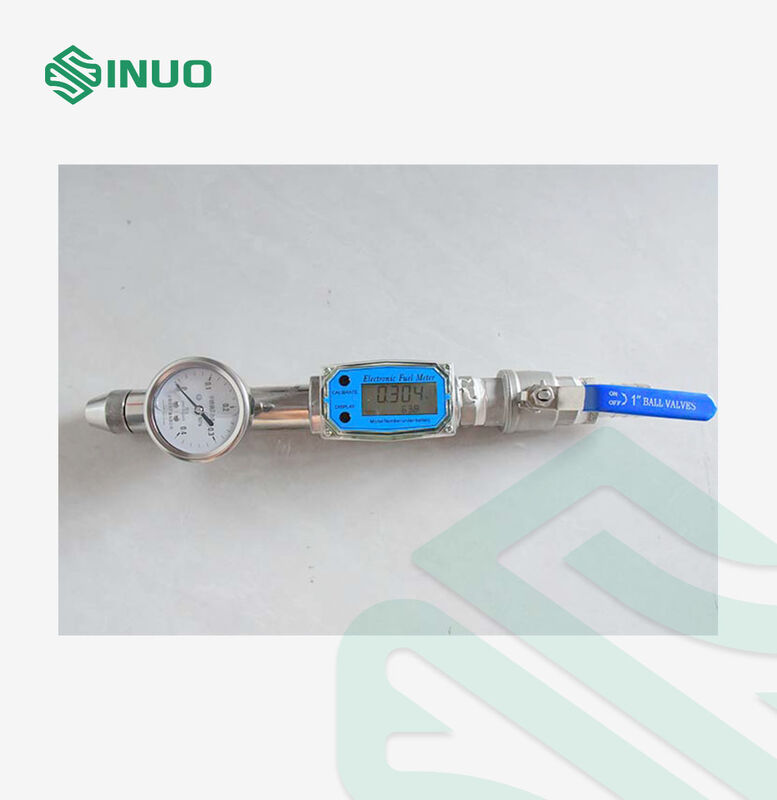

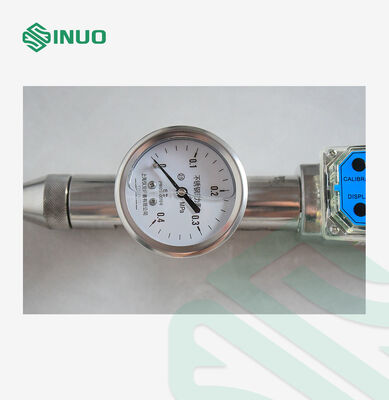

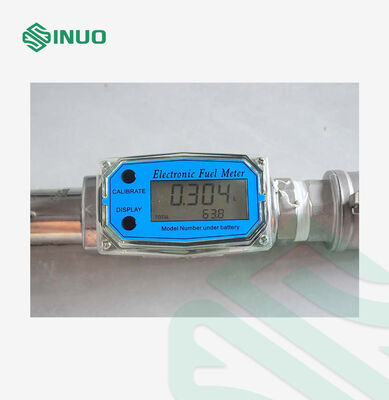

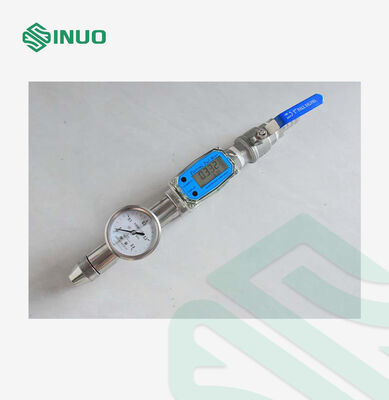

The Jet Nozzle IPX5 Set consists of a jet handle that is equipped with a digital flow mater and a pressure gauge.
– Ф6.3 mm nozzle that assemble easily to the gun.
– Stainless steel joint, easy to butt fiber hose.
Technical Parameters
| Model | SN447B-Ф6.3mm | SN447B-Ф12.5mm(Optional) | |
| Nozzle Internal Diameter | Ф6.3mm | Ф12.5mm | |
| Delivery Rate per Standard requirements | 12.5±0.625L/min | 100±5 L/min | |
| Distance from Nozzle to Enclosure Surface | 2.5~3m | ||
| Core of the Substantial Stream | Circle of approximately 40 mm diameter at 2.5 m distance from nozzle | Circle of approximately 120 mm diameter at 2.5 m distance from nozzle | |
| Test Duration | Likely 1min/m² (minimum: 3 min) | ||
| Pressure Gauge | 0~0.25MPa | ||
| Digital flow meter | 8L/min ~120L/min | ||
