| ชื่อแบรนด์: | Sinuo |
| เลขรุ่น: | SN881-1000L |
| ขั้นต่ำ: | 1 |
| เงื่อนไขการจ่ายเงิน: | t/t |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |

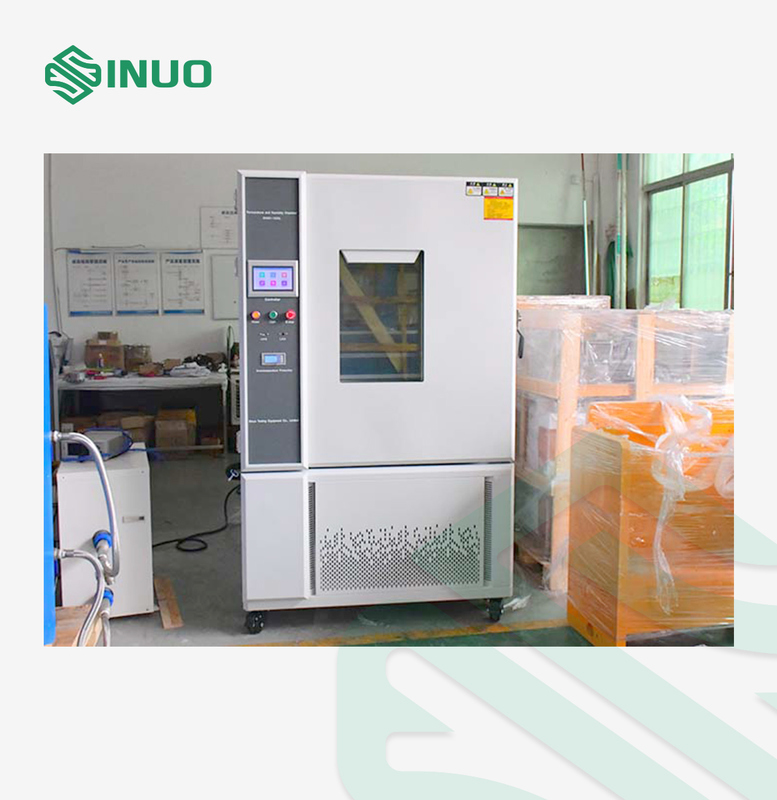

Humidity and Heat Test Equipment High and Low Temperature Alternating Test Chamber
Complied Standards & Clauses
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview
The Temperature and Humidity Test Chamber is designed to simulate various environmental conditions such as cold, heat, humidity, and dryness, ensuring reliable performance testing for products under extreme climates. It is widely used for electronic components, electrical appliances, plastic materials, and other industrial products, helping manufacturers evaluate product durability and reliability during storage and transportation.
This chamber provides precise temperature and humidity control, enabling users to perform stability, aging, and cyclic tests with high accuracy. Built with advanced insulation and intelligent control systems, it ensures consistent and repeatable test results.
The equipment fully complies with international standards including IEC60068-2-1 (Cold Test), IEC60068-2-2 (Dry Heat Test), IEC60068-2-78 (Damp Heat, Steady State), and IEC60068-2-30 (Damp Heat, Cyclic Test) — making it an ideal solution for environmental reliability testing in R&D and quality assurance laboratories.
Technical Parameters
| Technical Parameters | ||
| Control & Operation | PLC and touch screen intelligent control system | |
|
Chamber Size
|
Inner Size | External Size |
| 1000*1000*1000 mm | 1280*2150*2050 mm | |
| Temperature Range | -70 °C ~+150°C | |
| Humidity Range | 20%～98%RH | |
| Temperature fluctuation | ±0.5℃ | |
| Humidity fluctuation | ≤2.5% | |
| Temperature deviation | ≤±2.0℃ | |
| Humidity Deviation | ≤±3% | |
| Heating Rate | ≧2-3°C/min | |
| Cooling Rate | ≧1°C/min, average no load | |
| Load condition | None | |
| Working noise |
A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.) |
|
| Temperature and Humidity Range Scheme | |
|
| Structural features | ||
| Insulation enclosure structure |

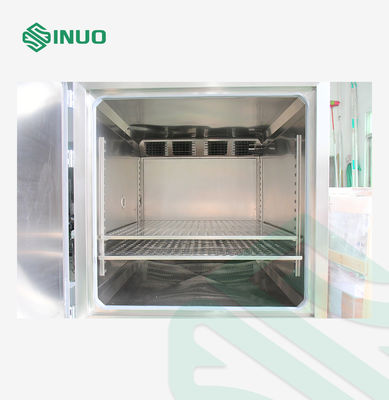

1. Outer wall material: A3 board spraying. 2. Inner wall material: brushed stainless steel plate SUS﹟304. 3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam. 4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam. |
|
| Bottom structure strength | The weight capacity of the track at the bottom of the test chamber: ≤100Kg/m² (load) | |
| Air conditioning channel |
1. Stainless steel long-axis centrifugal fans: 2 sets/90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air deflector, temperature sensor |
|
| Standard configuration of test chamber |
1. Observation window: 400x600x40mm 3-layer vacuum tempered glass 2. Flat embedded handles 3. Door hinges: SUS #304 imported hinges 4. Energy-saving lamp inside the chamber 5. Lead hole: φ50mm 1 piece |
|

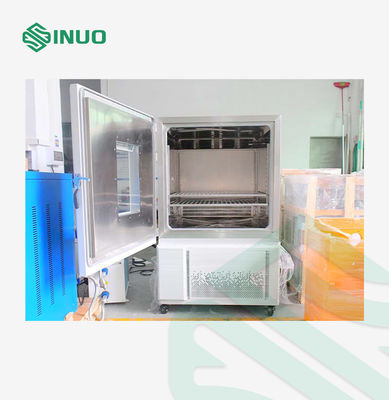

| Chamber door |
1. The single-piece door opens outwards, with the hinge on the left and the handle on the right (when facing the front of the box). 2. Equipped with a safety door locking mechanism (the door can be opened in the test room), the door is equipped with electric heat to prevent condensation, and the visible range of the insulating glass observation window (W400×H600mm). The door frame is equipped with an anti-condensation electric heating device. |
|

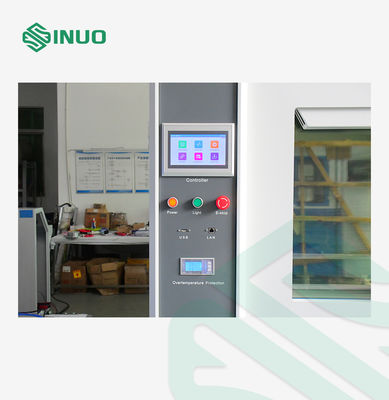

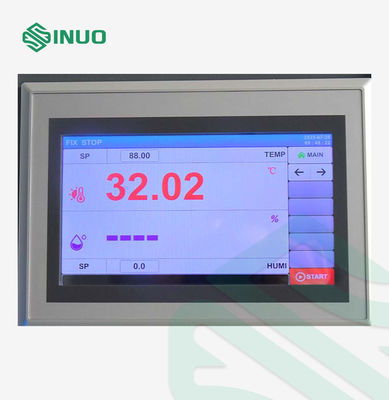

| Control panel | Controller 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button. | |
| Mechanical room | Refrigeration unit, compressor water tray, pressure relief device, heating device | |
| Power distribution cabinet | Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker | |
| Heater |
1. Fin-type radiator-shaped stainless steel electric heater 2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation 3. Heating power: approximately 3KW |
|
| Power cable hole | Located on the back of the chamber | |
| Cooling system | ||
| Operation mode | Air-cooled mechanical compression single-stage refrigeration mode | |
| Heating and cooling devices |
1. Hitachi or Emerson low-temperature and low-noise scroll compressor (air-cooled heat dissipation method). 2. Cooling method: air cooling |
|
| Heat and cold exchange device | Single-stage refrigeration system, Emerson low-temperature and low-noise scroll compressor imported from the United States. Adopting ultra-high-efficiency SWEP cold coal heat and cold exchange design [made in Sweden (sus#316)], it is more efficient than the traditional internal spiral type. | |
| Heating load adjustment |
1. The automatic adjustment of the cold coal flow rate device is adopted to effectively take away the heating load of the product to be tested, which is synchronized with German/Japanese technology. 2. Compared with traditional designs, the control stability and reproducibility are higher, and it achieves ultra-high performance in terms of power saving and energy saving. |
|
| Refrigeration compressor |
Hitachi or Emerson low temperature and low noise scroll compressor
|
|
| High efficiency components |
1. The condenser and evaporator adopt AC&R double spoiler type aluminum fin device. 2. The throttling devices adopt imported famous brand refrigeration accessories. |
|
| Expansion system | Capacity controlled refrigeration system | |
| Evaporative condenser | All copper tube heat exchanger | |
Details
