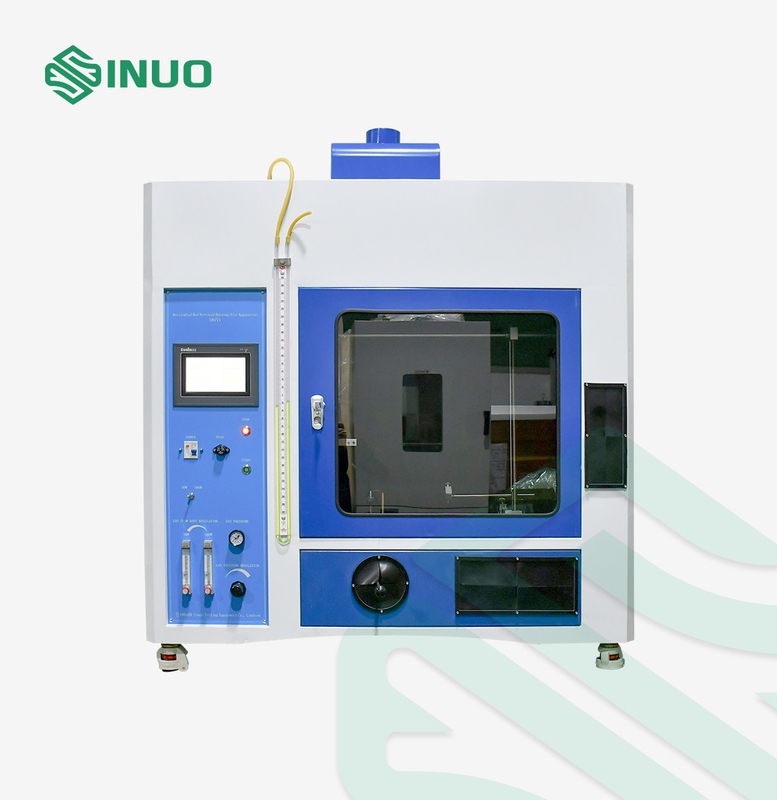

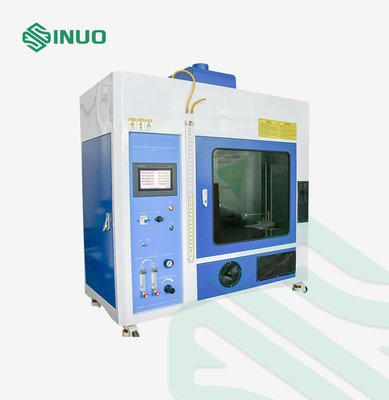

500W 50W Horizontal And Vertical Flame Test Chamber IEC60695
Complied Standards & Clauses
Conforms to UL94, IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20.
Equipment Overview
Product Overview
This Horizontal and Vertical Flammability Tester is designed to assess the ignitability and flame propagation characteristics of plastic and non-metallic materials used in electrical and electronic products. It complies with major international standards such as UL94, IEC60695-11-2/3/4/10/20, and relevant clauses from IEC60065:2014 and IEC60335-1.
It accurately simulates the influence of small open flames at the early stage of a fire, helping manufacturers determine the fire hazard potential of materials used in household appliances, IT equipment, audio/video devices, and other products.
Application
Plastic materials and non-metallic solid materials
Foam plastics with density ≥ 250kg/m³ (tested as per ISO845)
Horizontal and vertical burning tests for comparative combustion characteristics
Key Features
Integrated inlet ignition system with a flame delay of 0.1 seconds for stable ignition
Matte black background for optimal flame visibility and contrast
High-precision digital timers for accurate flame application and afterflame/afterglow measurement
Multi-functional flame measuring gauge for adjustable flame length and positioning
Full stainless steel enclosure ensures durability and corrosion resistance

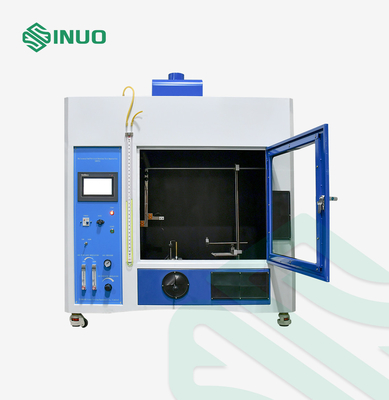

Large observation window for safe and clear test monitoring
Compact design incorporating international best practices
Complies with multiple global safety testing standards
Technical Parameters
| Test Flame Calibration | Distance between the bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm | |
| Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100° | ||
| Temperature rise time from100±2°to 700°±3°: 50W: 44±2S 500W:54±2S | ||
| Flame height:50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm,Outer flame:125±10mm | ||
| Temperature measuring copper head:50W:Ф5.5mm±0.01mm,weight before drilling 1.76 ± 0 .01 g；500W:Ф9mm±0.01mm,weight before drilling 10 ± 0 .05g | ||
| Back Pressure Water Column Height of U-Shaped Pressure Gauge | 50W: 10mm 500W:125±5 mm | |
| Test Angle | 50W: 0°,45° 500W: 20° | |
| Working voltage | 120V/60Hz |
| Power/grade | 50W and 500W double power switching |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote controller |
| Blast burner standard |
IEC60695-11-3/IEC60695-11-4/10, UL94, etc. inner diameter:Φ9.5±0.3mm,length:100mm,made of brass |
| Gas pressure | 0.1MPa |
| Gas flow | 50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment |
| U type pressure gauge back pressure water column height |
50W:10mm; 500W:125±5 mm |
| Test angle |
50W: 0°,45°; 500W: 20° |
| Burning time | 0-9999X0.1S Can be preset |
| Burning times | 0-9999 times,Can be preset |
| Residual flame/Residual glow | 0-9999X0.1S Can be displayed |
